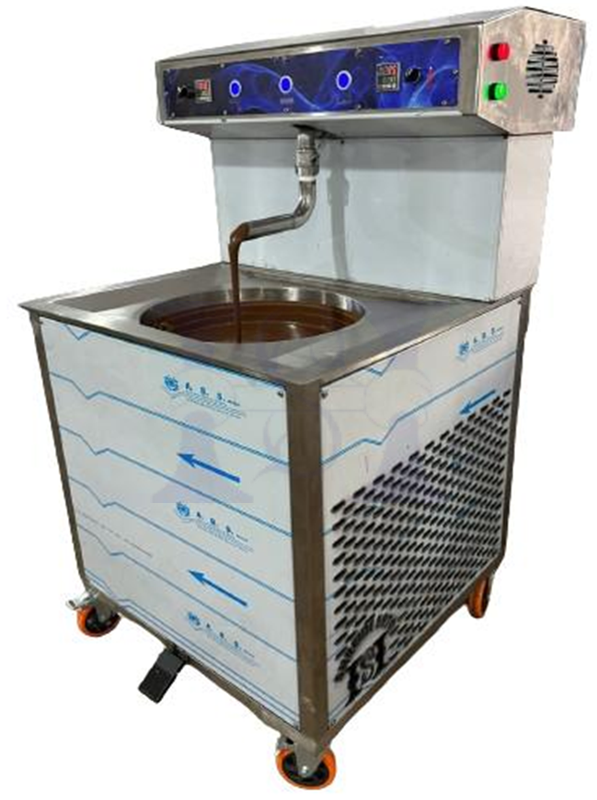

Power supply: 230 V mono-phase current, 50/60Hz compatible, Digital thermostat
Body made of stainless steel

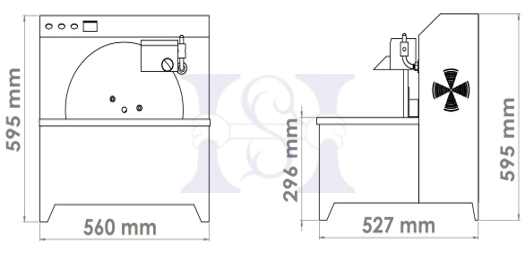

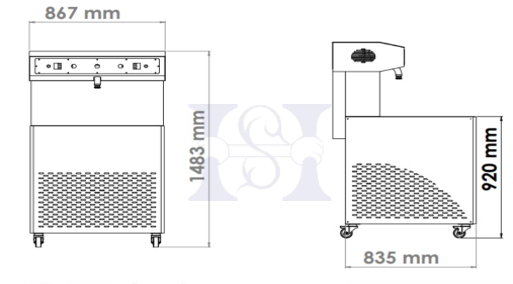

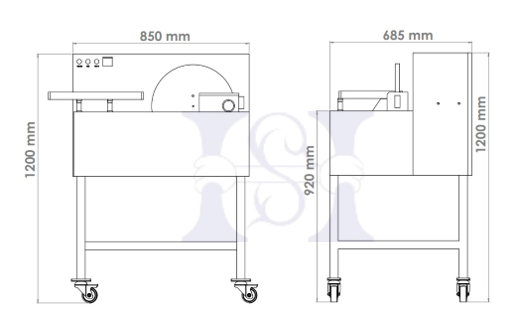

MOULDING MACHINE WHEELIE
Tank capacity: 55 kg of chocolate
Digital thermostat
It contains its own vibration table
Body made of stainless steel
Power supply: 3-Phase motor

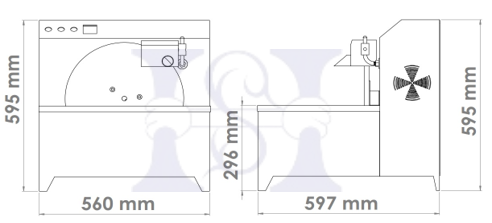

MOULDING MACHINE WHEELIE
Tank capacity: 10 kg of chocolate
Power supply: 230 V mono-phase current, 1600 W
Digital thermostat
Body made of stainless steel

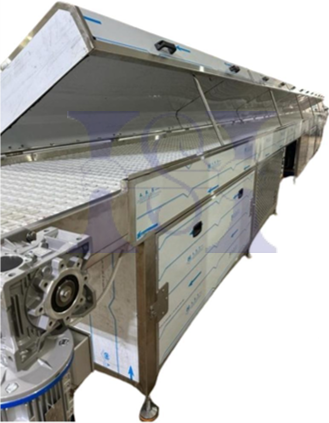

Cooling Tunnels
Cooling Tunnels
Cooling tunnels are designed to cool chocolate products.
Most of the cooling tunnels are custom-made, with lengths of 6, 8, 12, and 14 m.
Equipped with:
Belt with widths of 30, 40, 60, 80, and 125 cm.
Cooling unit from MAN Europe, made in France, with power according to tunnel needs and specifications.
Adjustable belt speed.
Correction of the belt path through air pistons.
Electrical components from Hyundai, made in Korea.

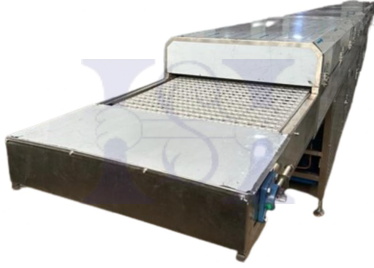

MOLD COOLING TUNNELS
Cooling tunnels are designed to cool chocolate products inside molds, and most tunnels are often custom-manufactured.
We have tunnels with lengths of 12 and 14 meters equipped with the following elements:
Cooling power divided into three units with a total power of 15 horsepower made in Europe
Mold capacity ranging between 3 and 4 molds, according to the order
Panning Machines

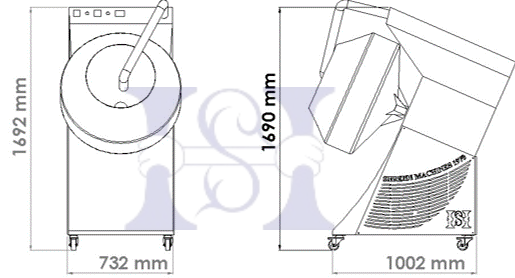

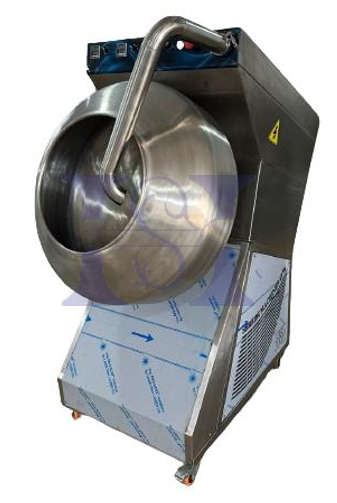

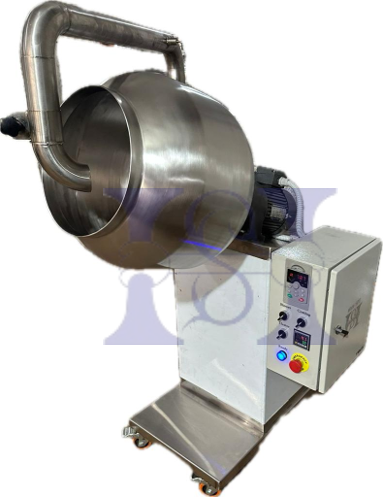

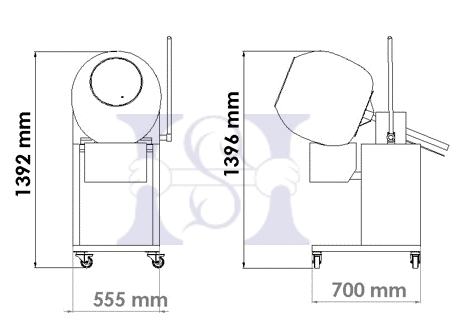

PANNING MACHINE
PANNING MACHINE came with the following specifications:
Capacity of 60 kg
2-horsepower motor made in Italy
Heat turbine and an inverter to control the airspeed and rotation
PANNING MACHINE 20Kg
PANNING MACHINE came with the following specifications:
Capacity: 20 kg
Motor with 0.4 horsepower
Air turbine with an inverter for controlling the rotation speed of the bowl
Heater: 200W
COOLING PANNING MACHINE 50KG
PANNING MACHINE came with the following specifications:
Capacity of 50 kg
Motor with a power of 5 horsepower
Air turbine equipped with an inverter
Inverter for controlling the speed of the bowl rotation
Heater for the bowl
The machine is made of stainless steel
Cooling system

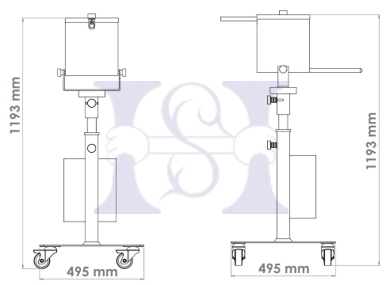

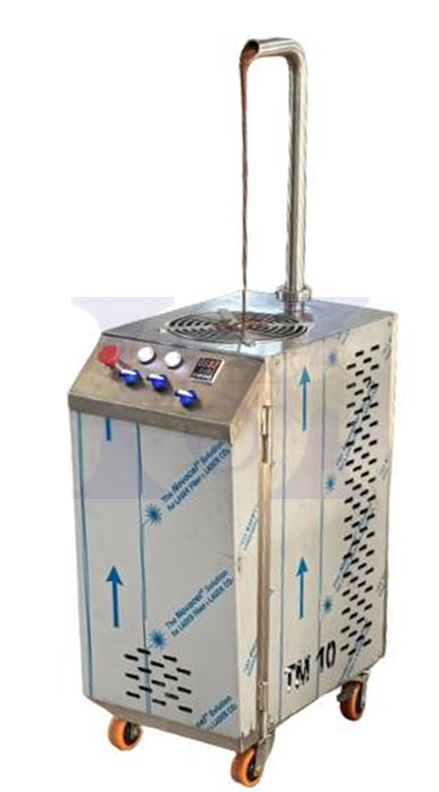

CHOCOLATE SPRAY
CHOCOLATE SPRAYER comes with the following specifications:
The sprayer comes inside a basin
It includes heaters
It is built on a wheeled base for easy mobility
It features a timer for controlling spray intervals
The entire device is made of stainless steel
Nut Machines
NUT ROASTING MACHINE
NUT ROASTING MACHINE for caramelizing with the following specifications:
Capacity of 60 kg
The metal is made of stainless steel
Roasting is done using gas
1-horsepower motor

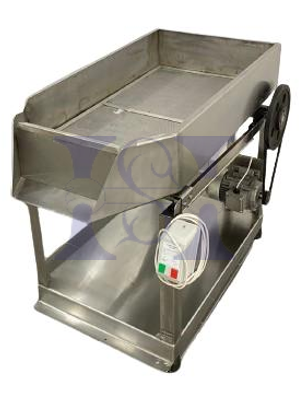

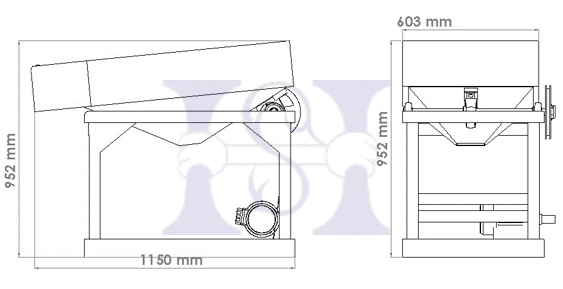

NUT STRAINER
A chocolate sieve for sifting hazelnuts, almonds, pistachios, and similar items, made of stainless steel and equipped with a motor and tank.

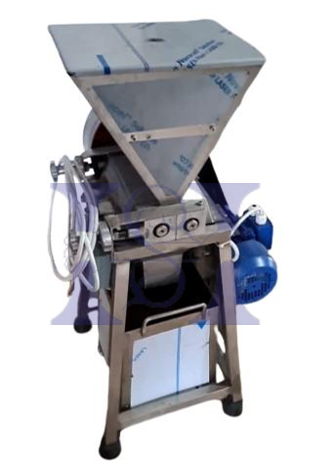

NUT CRUSHER
NUT CRASHER made of stainless steel
Depositor Line

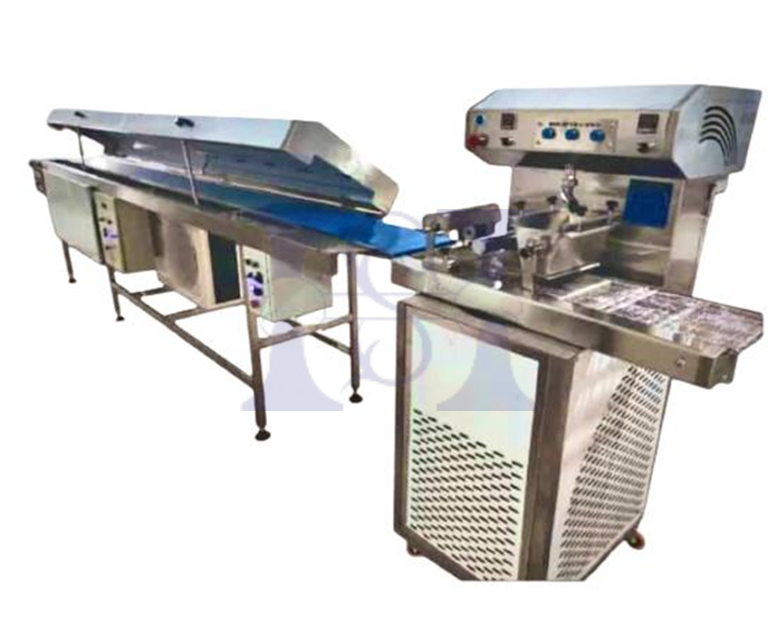

CHOCOLATE DEPOSITOR MACHINE
DEPOSITOR MACHINE came with the following specifications:
Width of the belt: 60 cm
Operates through pneumatic engines to produce tear and dime beads in a single mechanism
Programming the belt through PLC (Programmable Logic Controller)
Equipped with a 40 kg reservoir, and the temperature of the chocolate is adjusted automatically
The entire metal is made of stainless steel 304
CHOCOLATE DEPOSITORS LINE(SHELL MODEL)
DEPOSITOR MACHINE LINE contains 3 chocolate depositors came with the following specifications:
The first depositor for the shell
The second depositor for the filling
The third depositor for sealing
The line includes three Tunnels: the first for cooling the shell, the second for cooling the filling, and the third for cooling the final mold
The entire line is made of stainless steel
All electrical components are made by Hyundai
Suitable for both cold and hot chocolate
HACOS CHOCOLATE LINE
The line includes the following specifications:
Length of the line: 200 cm, Width: 75 cm
Power consumption: 15 KW
The line is suitable for making plain chocolate and shells.
Suitable for pouring plain chocolate and nuts.

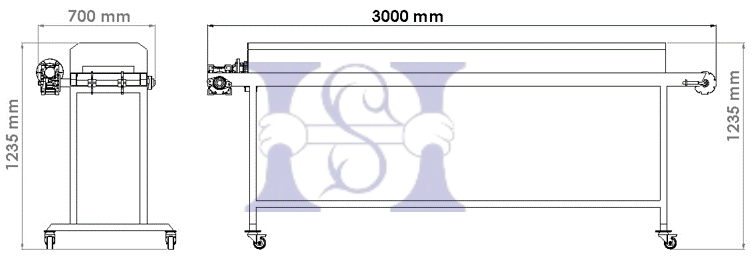

Mold Heater
The mold heater comes with the following specifications:
Length: 3 meters
Motor: 0.5 horsepower with inverter
Temperature control
Contains a 5 cm thick thermal wool insulation layer
DEPOSITOR ONE SHOT MACHINE(2 colors) OR POUR THE DAM WITH NUTS
THE DEPOSITOR ONE SHOT MACHINE features the following specifications:
Length of 3 meters
Includes a heater, pouring head, and vibrator
It includes a feeder, heater, pouring head, and vibrator
The pouring head is controlled through PLC
Enrober Machine

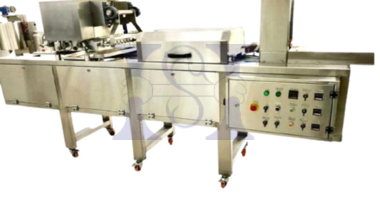

ENROBER MACHINE
THE ENROBER MACHINE features the following specifications:
The belt width is 60 cm
The belt motor is European
Stainless steel pump
Heated dipping chamber
Electrical panel with inverter for the mat
Inverter for the air turbine
The machine is entirely made of stainless steel
Ball Mill
BALL MILL
The tank came with the following specifications:
Capacity available from 100 to 1000 Kg
Control panel including inverters to control the rotation speed of the motor
Built-in heaters and water circulation pump
Jacketed piping system and body of the tank

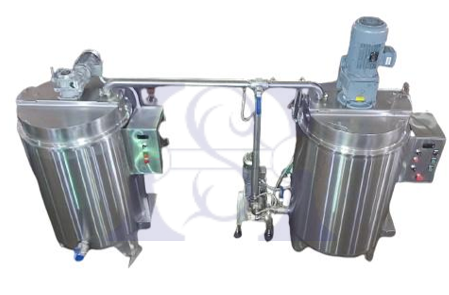

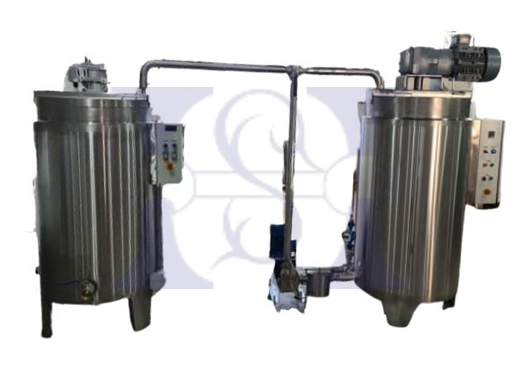

CHOCOLATE GRINDING SET
The tank came with the following specifications:
Capacity available from 100 to 1000 Kg
Control panel including inverters to control the rotation speed of the motor
Built-in heaters and water circulation pump
Jacketed piping system and body of the tank

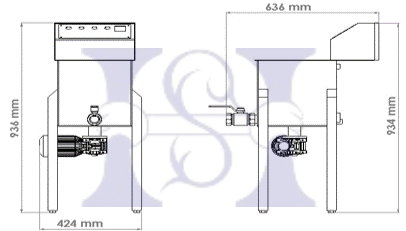

BALL MILL 15 KG
BALL MILL with the following specifications:
Size: 15 kg
Motor: 1 horsepower
Blade/Scissors and nogat machines
MIXER
CARAMEL MIXER came with the following specifications:
Capacity of 150 kg of caramel
2-horsepower motor operating on 3 phases, made in Italy
There is an inverter for controlling the rotation speed, manufactured by the Taiwanese company Delta
The entire metal is made of stainless steel
The machine is on wheels for easy transportation and movement
It can be used for cooking Nougat, caramel, and coconut
CUTTING MACHINE
Made of stainless steel and it's available
Motor: 5.5 horsepower
Blade/Scissors section for nuts and disc made of stainless steel
Rotary Moulder Machine

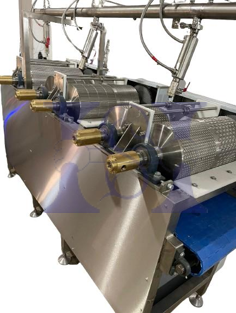

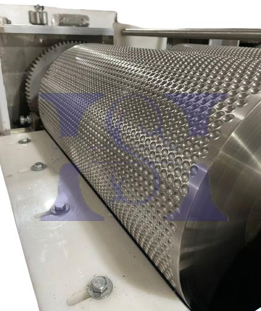

ROTARY MOULDER MACHINE
ROTARY MOULDER MACHINE for date palm and coconut came with the following specifications:
It offers cylinder shaping in 40, 60, and 80 cm according to demand, equipped with four engines
Plastic forming cylinder specifically designed for the machine
The machine is made of stainless steel.
The belt is specified to the machine
Each motor is equipped with an inverter to control the speed of the cylinders
Correction of the belt path is achieved through air pistons and sensors.
Chiller

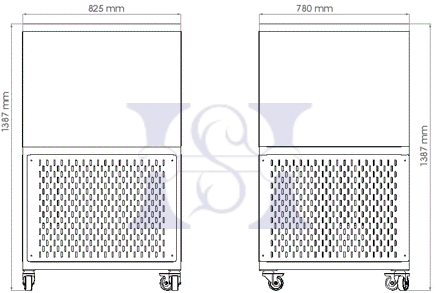

CHILLER
COOLING CHILLER comes with the following specifications:
5.5-horsepower motor
A quantity of 100 liters of water equipped with a cooling compressor MTZ 64 connected to a cylinder, providing cooling that reaches a temperature of -20°C
Fermisal Machine
VERMICELLI MACHINE
VERMICELLI MACHINE comes with the following specifications:
2-horsepower motor with an inverter device
Hole diameter is 1.5 mm, made of stainless steel with a thickness of 3 mm
The machine is made of stainless steel
Smarties Cylinder
SMARTIES CYLINDER
Smarties Cylinder comes with the following specifications:
Length: 50 cm
Diameter: 27 cm (±)
Mounted on a base
Produces 100 kg per hour
Material: Stainless Steel 304
Butter Tank
BUTTER TANK
BUTTER TANK comes with the following specifications:
Available in sizes of 500, 1000, and 3000 kilograms
Made of stainless steel with a double-jacket caliber 304
Equipped with sensors to determine the desired temperature, along with a dedicated electrical panel
Placement of a sensor on the lower basin and another on the map
